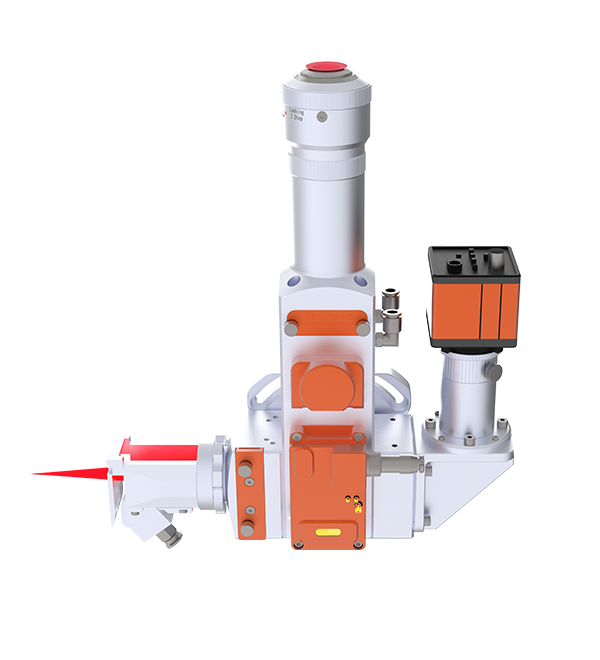

HK20L/R Platform Swing Welding Head (Left/Right Out) 2000W

  • Drawer-type protective mirror design for easy maintenance
  • Perfect sealing design, full optical and body water-cooling to improve the stability and service life of the welding head.
  • Can be equipped with automatic wire feeding device to complete the wire filling welding.
  • Integrated CCD, compatible vision system, real-time monitoring of the welding process
  • Dedicated air blades or coaxial blowing method, effective protection of lenses
  • Optional temperature control feedback to monitor the real-time status of all lenses
Immediately consult
  • Product parameters
  • Data download

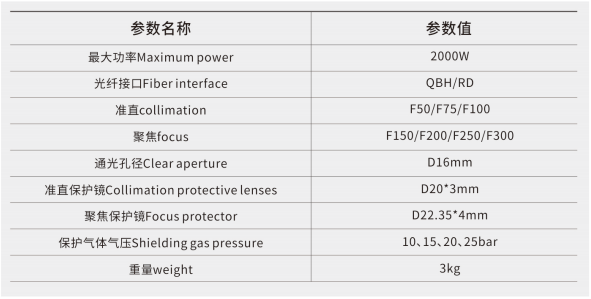

Technical parameters:







Product Dimensions:



  • HK20L/R Platform Oscillating Weld Head Product Description

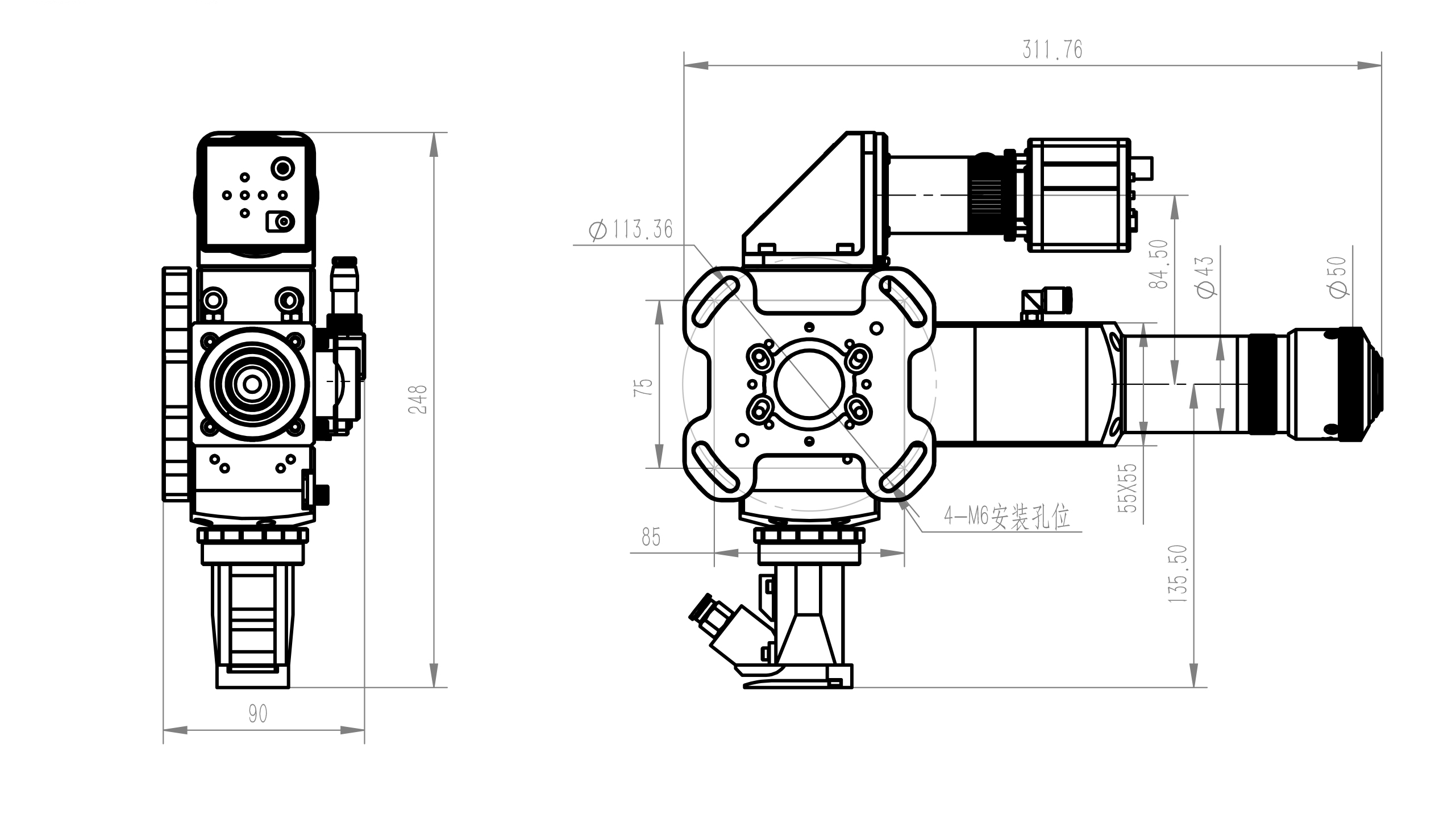

  • HK20L/R Platform Swing Weld Head 3D Drawing
