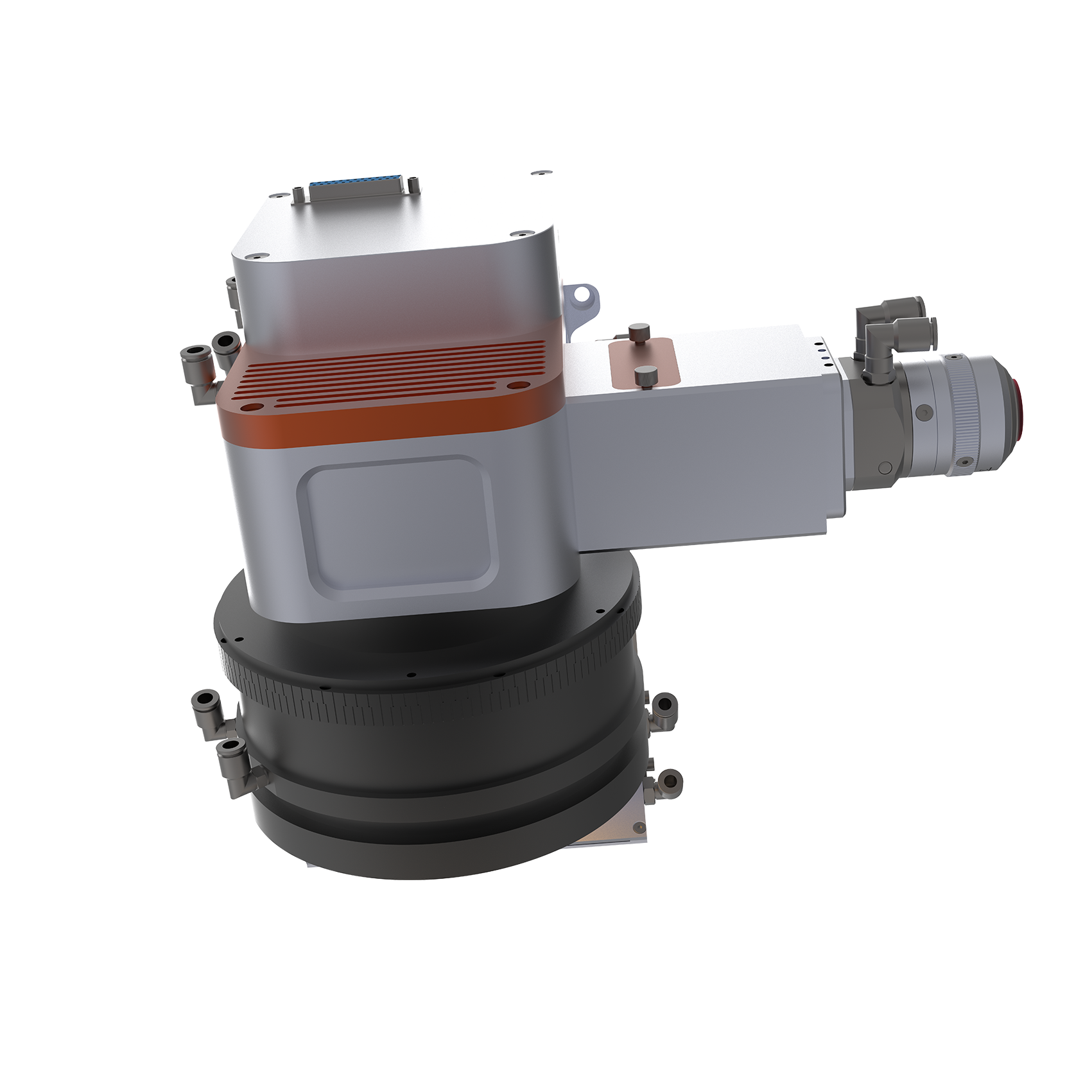

HC60-B Single Pendulum Scanning Head 6000W

• Self-developed multifunctional laser welding and cleaning software control system, simple and clear interface, convenient operation, a variety of parameters can be set and adjusted according to the actual application scenarios, to achieve high-performance control of the laser and galvanometer.
• The scanning length can be set by yourself, the cleaning interface is uniform and does not hurt the substrate.
• Professional optical design, high damage threshold galvanometer lenses, high throughput and large depth of focus field lenses;
• External air knife and field mirror built-in coaxial blowing design, effective protection to the protective mirror
• X-axis oscillation, simple and lightweight structure, can be widely used on platforms or manipulators.
• The main body of the full-cavity water-cooled design, field mirror independent water-cooled design, to meet the 6KW or less high-power laser welding and cleaning of a long time stable operation
